量程Capacity |

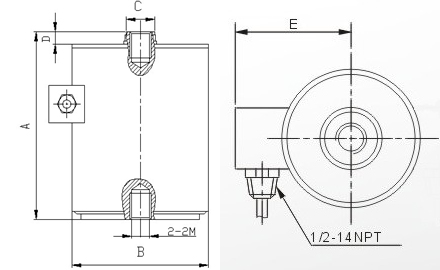

尺寸Size (mm) |
||||||
|
Klb |
A |
B |
C |
D |
E |
M |
F |
|
0.5~3 |
116.0 |
90.0 |
16.0 |
6.5 |
73.0 |
1/2-20 |
22.5 |
|
5~10 |
151.0 |
89.5 |
34.5 |
9.5 |
73.0 |
1-14 |
32.5 |
|
20~30 |
216.0 |
127.5 |
63.5 |
13.5 |
91.0 |
1-12 |
51.5 |
|
50~100 |
291.0 |
165.0 |
76.0 |
13.5 |
112.5 |
2-12 |
70.5 |
|
主 要 技 术 指 标Main Description |
|||
|
测量范围Capacity |
0.5、1、1.5、2、2.5、3、5、10、20、50、100、 |
kg |
|
|
输出灵敏度Rated Output |
3．0±0.010 |
mV/V |
|
|
非线性Linear |
±0.03 |
%F.S |
|
|
滞后Hysteresis |
±0.03
|
%F.S |
|
|
重复性Reapeatability |
±0.01
|
%F.S |
|
|
蠕变Creep
|
±0.02
|
%F.S |
|
|
零点输出Zero Balance |
≤±1.0
|
%F.S |
|
|
温度补偿范围 Conpensated Temperature Range |
室温～+60 |
℃ |
|
|
零点温度补偿系数Temperature Effect On Zero |
±0.02 |
%F.S/10 ℃ |
|
|
额定输出温度系数 Temperature Effect On Output
|
±0.02 |
%F.S/10 ℃ |
|
|
供桥电压 Excitation Voltage |
10V |
AC/DC |
|
|
绝缘电阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
|
输入电阻 Input Resistence |
400±5 |
Ω |
|
|
输出电阻Output Resistence |
350±2 |
Ω |
|
|
允许过载系数Safe Overload |
120 |
%F.S |
|
|
电缆连接方式Cable Connection
|
信号输出Singal Output： 黄:Yellow (+) 黑:Black (－) |
||
|
供桥电压Excitation Voltage： 红Red: (+) 绿Green： （－） |
|||
