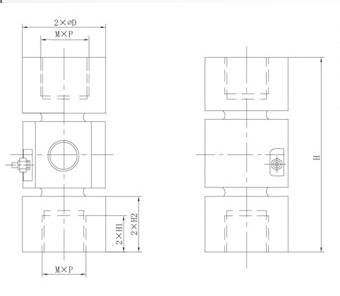

量程 |
尺寸mm |
||||
t |
H |
H1 |
H2 |
ΦD |
MXP |
20 |
185.0 |
38.0 |
57.0 |
78.0 |
M42x3 |
30~40 |
225.0 |
50.0 |
77.0 |
105.0 |
M56x3 |
量程 |
尺寸mm |
||||
t |
H |
H1 |
H2 |
ΦD |
MXP |
20 |
185.0 |
38.0 |
57.0 |
78.0 |
M42x3 |
30~40 |
225.0 |
50.0 |
77.0 |
105.0 |
M56x3 |
主 要 技 术 指 标Main Description |
||
测量范围Capacity |
1、2、3、5、10、20、30 |
kg |
输出灵敏度Rated Output |
1.50±0.10 |
mV/V |
非线性Linear |
±0.02 |
%F.S |
滞后Hysteresis |
±0.02 |
%F.S |
重复性Reapeatability |
±0.01 |
%F.S |
蠕变Creep |
±0.02 |
%F.S |
零点输出Zero Balance |
≤±1.0 |
%F.S |
温度补偿范围 Conpensated Temperature Range |
室温~+60 |
℃ |
零点温度补偿系数Temperature Effect On Zero |
±0.02 |
%F.S/10 ℃ |
额定输出温度系数 Temperature Effect On Output |
±0.02 |
%F.S/10 ℃ |
供桥电压 Excitation Voltage |
10V |
AC/DC |
绝缘电阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
输入电阻 Input Resistence |
765±10 |
Ω |
输出电阻Output Resistence |
700±2 |
Ω |
允许过载系数Safe Overload |
200 |
%F.S |
电缆连接方式Cable Connection |
信号输出Singal Output: 黄:Yellow (+) 黑:Black (-) |
|
供桥电压Excitation Voltage: 红Red: (+) 绿Green:(-) |
