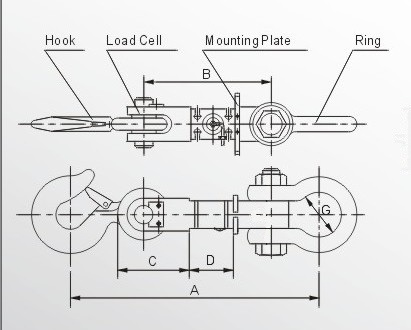

量程Capacity |
尺寸Size（mm） |
||||
|
t |
A |
B |
C |
D |
G |
|
1~3 |
442.0 |
260.0 |
100.0 |
111.0 |
68.0 |
|
5 |
546.0 |
302.0 |
120.0 |
120.5 |
93.0 |
|
10 |
610.0 |
324.0 |
134.0 |
130.5 |
100.0 |
|
20 |
741.0 |
355.0 |
169.0 |
149.0 |
145.0 |
|
30 |
910.0 |
435.0 |
189.0 |
171.0 |
185.0 |
|
主 要 技 术 指 标Main Description |
||
|
测量范围Capacity |
1、2、3、5、10、20、30 |
kg |
|
输出灵敏度Rated Output |
1.50±0.10 |
mV/V |
|
非线性Linear |
±0.02 |
%F.S |
|
滞后Hysteresis |
±0.02
|
%F.S |
|
重复性Reapeatability |
±0.01
|
%F.S |
|
蠕变Creep
|
±0.02
|
%F.S |
|
零点输出Zero Balance |
≤±1.0
|
%F.S |
|
温度补偿范围 Conpensated Temperature Range |
室温～+60 |
℃ |
|
零点温度补偿系数Temperature Effect On Zero |
±0.02 |
%F.S/10 ℃ |
|
额定输出温度系数 Temperature Effect On Output
|
±0.02 |
%F.S/10 ℃ |
|
供桥电压 Excitation Voltage |
10V |
AC/DC |
|
绝缘电阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
输入电阻 Input Resistence |
765±10 |
Ω |
|
输出电阻Output Resistence |
700±2 |
Ω |
|
允许过载系数Safe Overload |
200 |
%F.S |
|
电缆连接方式Cable Connection
|
信号输出Singal Output： 黄:Yellow (+) 黑:Black (－) |
|
|
供桥电压Excitation Voltage： 红Red: (+) 绿Green：（－） |
||
