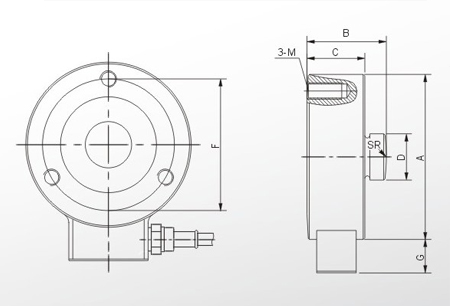

量程 |
尺寸mm |
|||||||
|
t |
A |
B |
C |
D |
F |
G |
SR |
M |
|
0.5~15Se |
82.0 |
44.0 |
31.0 |
22.0 |
70.0 |
20.0 |
120.0 |
M8 |
|
15~30Se |
100.0 |
48.5 |
35.0 |
28.0 |
80.0 |
20.0 |
120.0 |
M10 |
|
30 |
126.0 |
54.0 |
40.0 |
35.0 |
90.0 |
20.0 |
120.0 |
M12 |
|
主 要 技 术 指 标Main Description |
||
|
测量范围Capacity |
0.5~15、30 |
kg |
|
输出灵敏度Rated Output |
2.0±0.010 |
mV/V |
|
非线性Linear |
±0.05 |
%F.S |
|
滞后Hysteresis |
±0.05
|
%F.S |
|
重复性Reapeatability |
±0.03
|
%F.S |
|
蠕变Creep
|
±0.02
|
%F.S |
|
零点输出Zero Balance |
≤±1.0
|
%F.S |
|
温度补偿范围 Conpensated Temperature Range |
室温～+60 |
℃ |
|
零点温度补偿系数Temperature Effect On Zero |
±0.02 |
%F.S/10 ℃ |
|
额定输出温度系数 Temperature Effect On Output
|
±0.02 |
%F.S/10 ℃ |
|
供桥电压 Excitation Voltage |
10V |
AC/DC |
|
绝缘电阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
输入电阻 Input Resistence |
750±10 |
Ω |
|
输出电阻Output Resistence |
700±5 |
Ω |
|
允许过载系数Safe Overload |
120 |
%F.S |
|
电缆连接方式Cable Connection
|
信号输出Singal Output： 黄:Yellow (+) 黑:Black (－) |
|
|
供桥电压Excitation Voltage： 红Red: (+) 绿Green：（－） |
||
