量程Capacity |

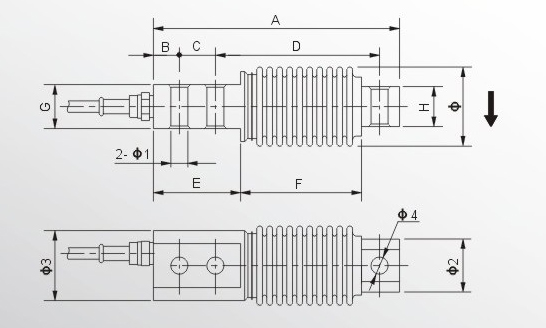

尺寸Size(mm) |
||||||||||||
|
kg |
A |
B |
C |
D |
E |
F |
G |
H |
Φ |
Φ1 |
Φ2 |
Φ3 |
Φ4 |
|
100~200 |
123.1 |
13.0 |
18.0 |
82.0 |
45.0 |
59.0 |
22.2 |
20.0 |
45.0 |
8.5 |
26.0 |
35.0 |
8.5 |
|
300~1000 |
210.2 |
15.0 |
40.2 |
133.0 |
93.0 |
64.0 |
34.0 |
25.0 |
60.0 |
13.0 |
36.0 |
50.0 |
14.0 |
|
主 要 技 术 指 标Main Description |
|||
|
测量范围Capacity |
10、50、75、100、150、200、300、500、1000 |
kg |
|
|
输出灵敏度Rated Output |
2．0±0.10 |
mV/V |
|
|
非线性Linear |
±0.02 |
%F.S |
|
|
滞后Hysteresis |
±0.02
|
%F.S |
|
|
重复性Reapeatability |
±0.01
|
%F.S |
|
|
蠕变Creep
|
±0.02
|
%F.S |
|
|
零点输出Zero Balance |
≤±1.0
|
%F.S |
|
|
温度补偿范围 Conpensated Temperature Range |
室温～+60 |
℃ |
|
|
零点温度补偿系数Temperature Effect On Zero |
±0.02 |
%F.S/10 ℃ |
|
|
额定输出温度系数 Temperature Effect On Output
|
±0.02 |
%F.S/10 ℃ |
|
|
供桥电压 Excitation Voltage |
10V |
AC/DC |
|
|
绝缘电阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
|
输入电阻 Input Resistence |
385±5 |
Ω |
|
|
输出电阻Output Resistence |
350±2 |
Ω |
|
|
允许过载系数Safe Overload |
120 |
%F.S |
|
|
电缆连接方式Cable Connection
|
信号输出Singal Output： 黄:Yellow (+) 黑:Black (－) |
||
|
供桥电压Excitation Voltage： 红Red: (+) 绿Green： （－） |
|||
