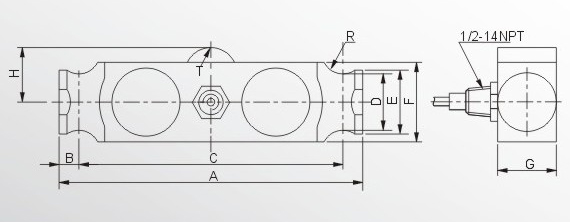

量程 |
尺寸mm |
|||||||||
|
Klb |
A |
B |
C |
D |
E |
F |
G |
H |
R |
T |
|
25~40 |
210.2 |
12.8 |
184.3 |
41.5 |
51.0 |
62.2 |
49.5 |
44.4 |
12.8 |
12.8 |
|
50~75 |
292.2 |
19.2 |
254.2 |
43.3 |
56.0 |
74.8 |
49.5 |
51.0 |
19.2 |
25.5 |
|
100~125 |
368.2 |
25.5 |
317.3 |
62.0 |
81.5 |
98.1 |
73.5 |
70.0 |
25.5 |
38.2 |
|

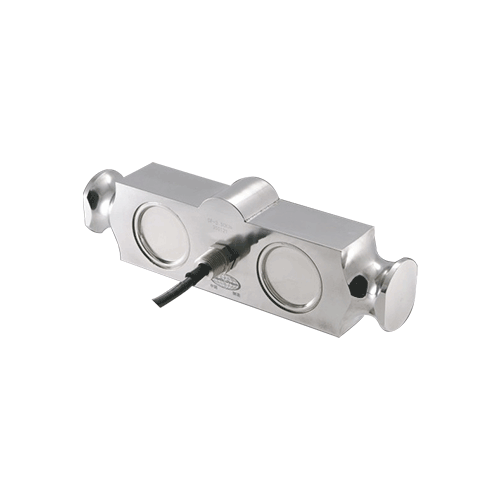

主 要 技 术 指 标Main Description |
|||
|
测量范围Capacity |
25、40、50、60、75、100、125 |
kg |
|
|
输出灵敏度Rated Output |
3．0±0.010 |
mV/V |
|
|
非线性Linear |
±0.03 |
%F.S |
|
|
滞后Hysteresis |
±0.03
|
%F.S |
|
|
重复性Reapeatability |
±0.01
|
%F.S |
|
|
蠕变Creep
|
±0.03
|
%F.S |
|
|
零点输出Zero Balance |
≤±1.0
|
%F.S |
|
|
温度补偿范围 Conpensated Temperature Range |
室温～+60 |
℃ |
|
|
零点温度补偿系数Temperature Effect On Zero |
±0.03 |
%F.S/10 ℃ |
|
|
额定输出温度系数 Temperature Effect On Output
|
±0.03 |
%F.S/10 ℃ |
|
|
供桥电压 Excitation Voltage |
10V |
AC/DC |
|
|
绝缘电阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
|
输入电阻 Input Resistence |
770±8 |
Ω |
|
|
输出电阻Output Resistence |
700±2 |
Ω |
|
|
允许过载系数Safe Overload |
120 |
%F.S |
|
|
电缆连接方式Cable Connection
|
信号输出Singal Output： 黄:Yellow (+) 黑:Black (－) |
||
|
供桥电压Excitation Voltage： 红Red: (+) 绿Green： （－） |
|||
